Hardware Specifications
| Vendor/Brand | Adtran |

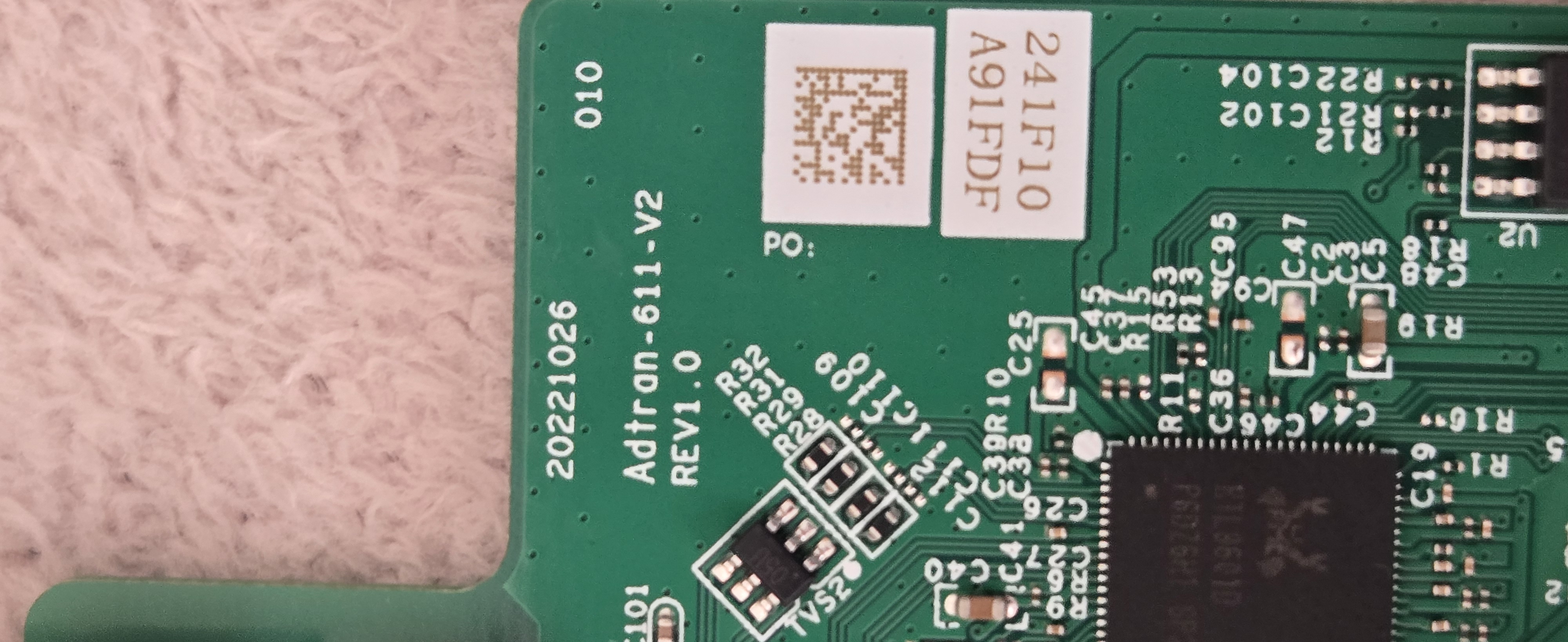

| Model | SDX 611 (Adtran-611-V2 REV1.0) |
| Chipset | Realtek RTL9601D |
| Flash | 16 MB (Winbond W25Q128JVSQ) |
| RAM | |
| System | |
| Optics | SC/APC (U&T UTG24P05) |
| 2.5GbaseT | No |
| IP address | |
| Web Gui | |
| SSH | |
| Telnet | |
| Serial | ✅ |
| Serial baud | 115200 |
| Serial encoding | 8-N-1 |
| Form Factor | ONT |

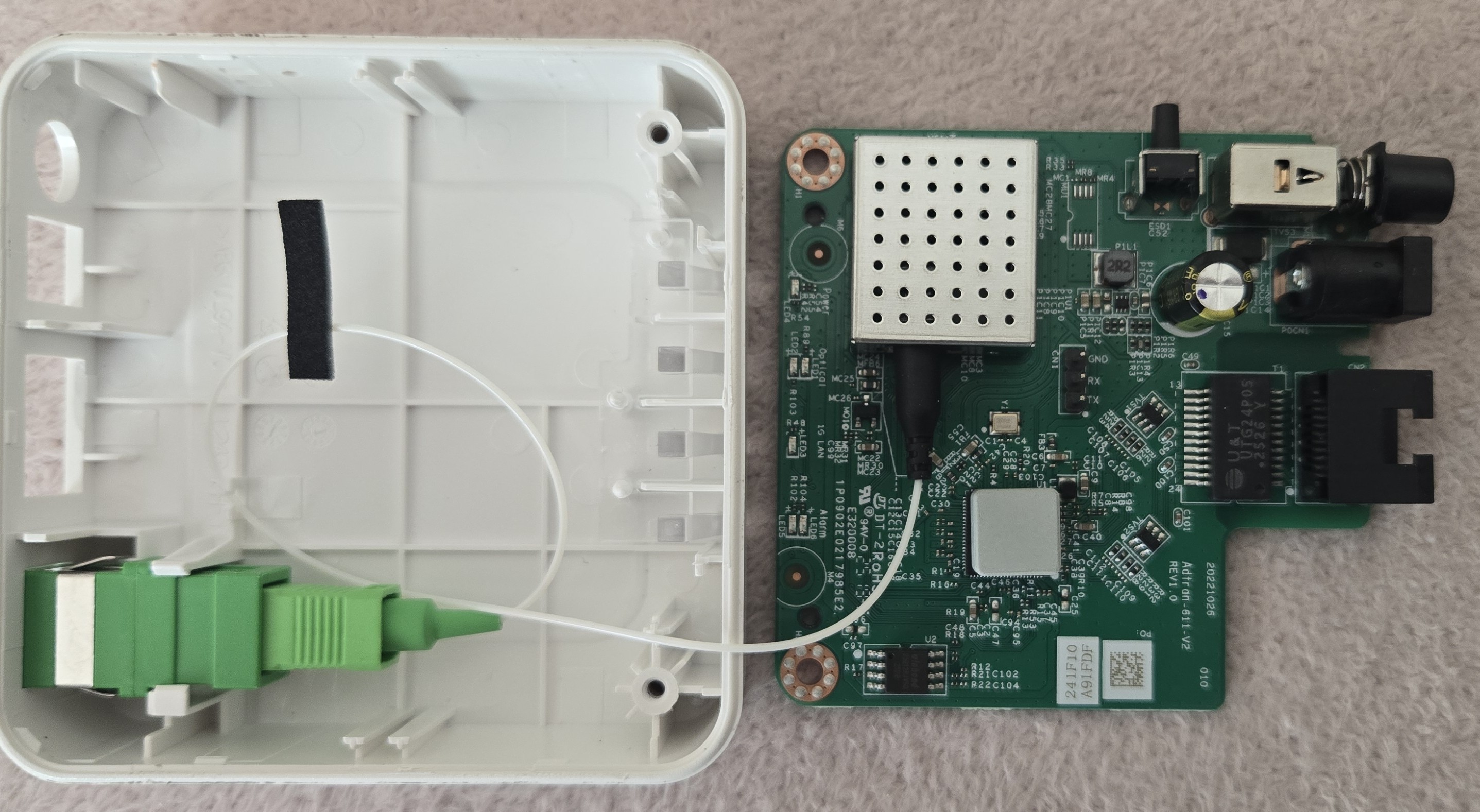

Disassembly
- Remove the two screws hidden under the rubber feet on the back of the unit
- Use a plastic pry tool to separate the rear cover, as it is held in place by a snap fit
Note
Be careful when prying the rear cover off, the snap fit clips can break easily.
Serial

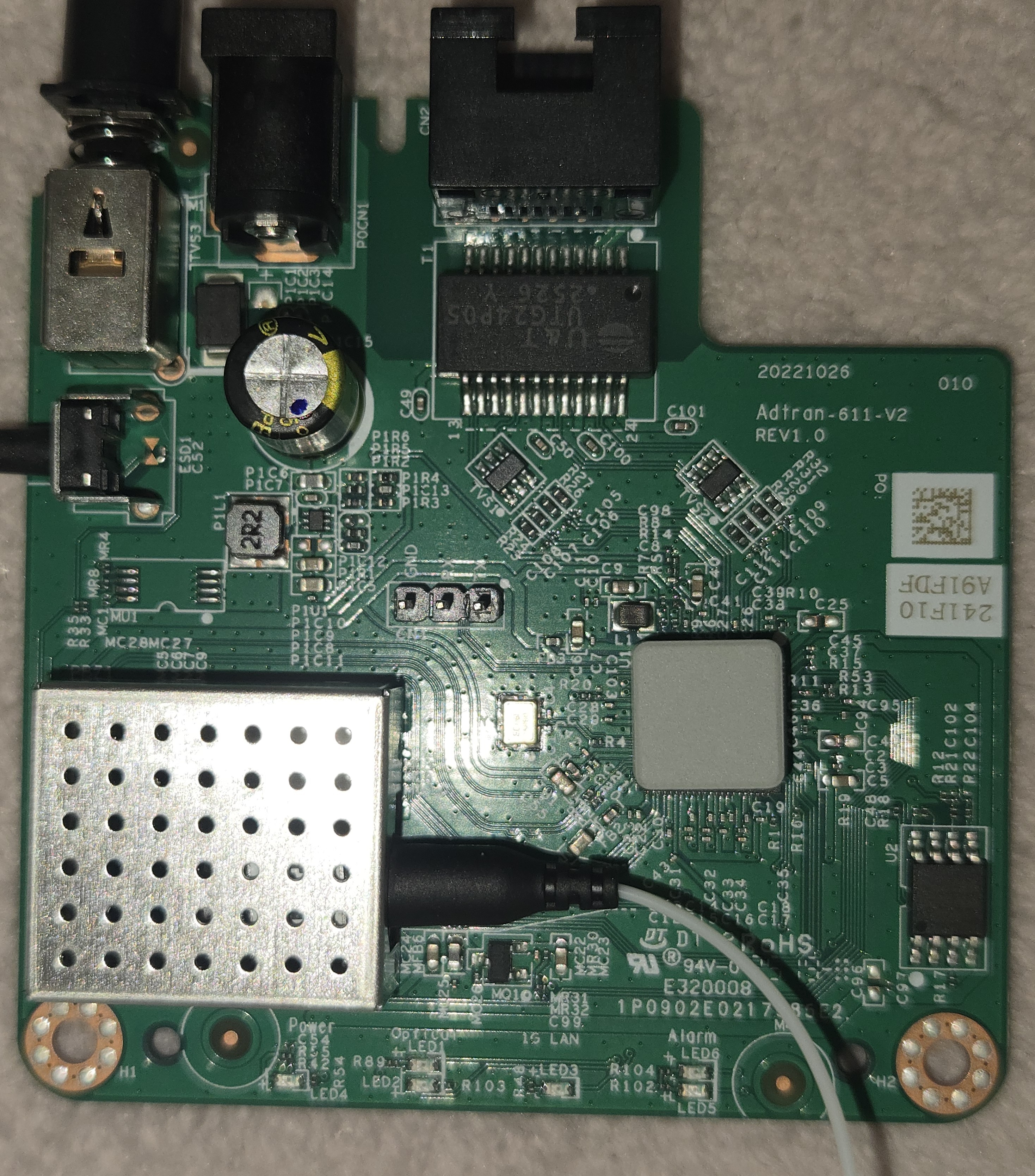

The board has GND, TX and RX headers already soldered. A USB UART adapter such as a CH340G can be used to access the serial console.
| USB TTL(UART) Adapter | Board header |
|---|---|
| GND | GND |
| TX | RX |
| RX | TX |
Note
Some USB TTL adapters label TX and RX pins the other way around: try to swap them if the connection doesn't work.
Chip identification
| Chip | Function |
|---|---|

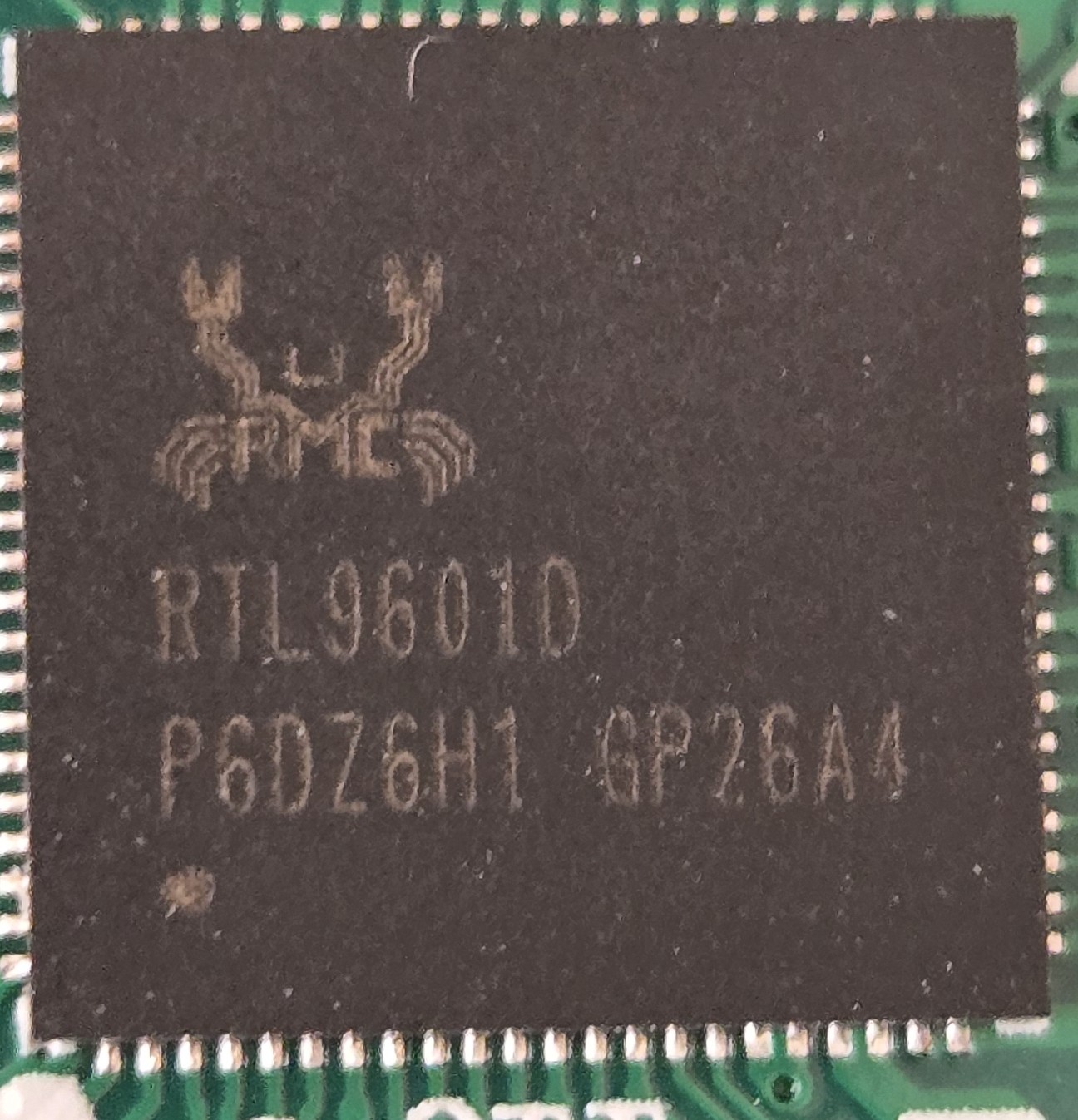

| Realtek RTL9601D | GPON SoC |

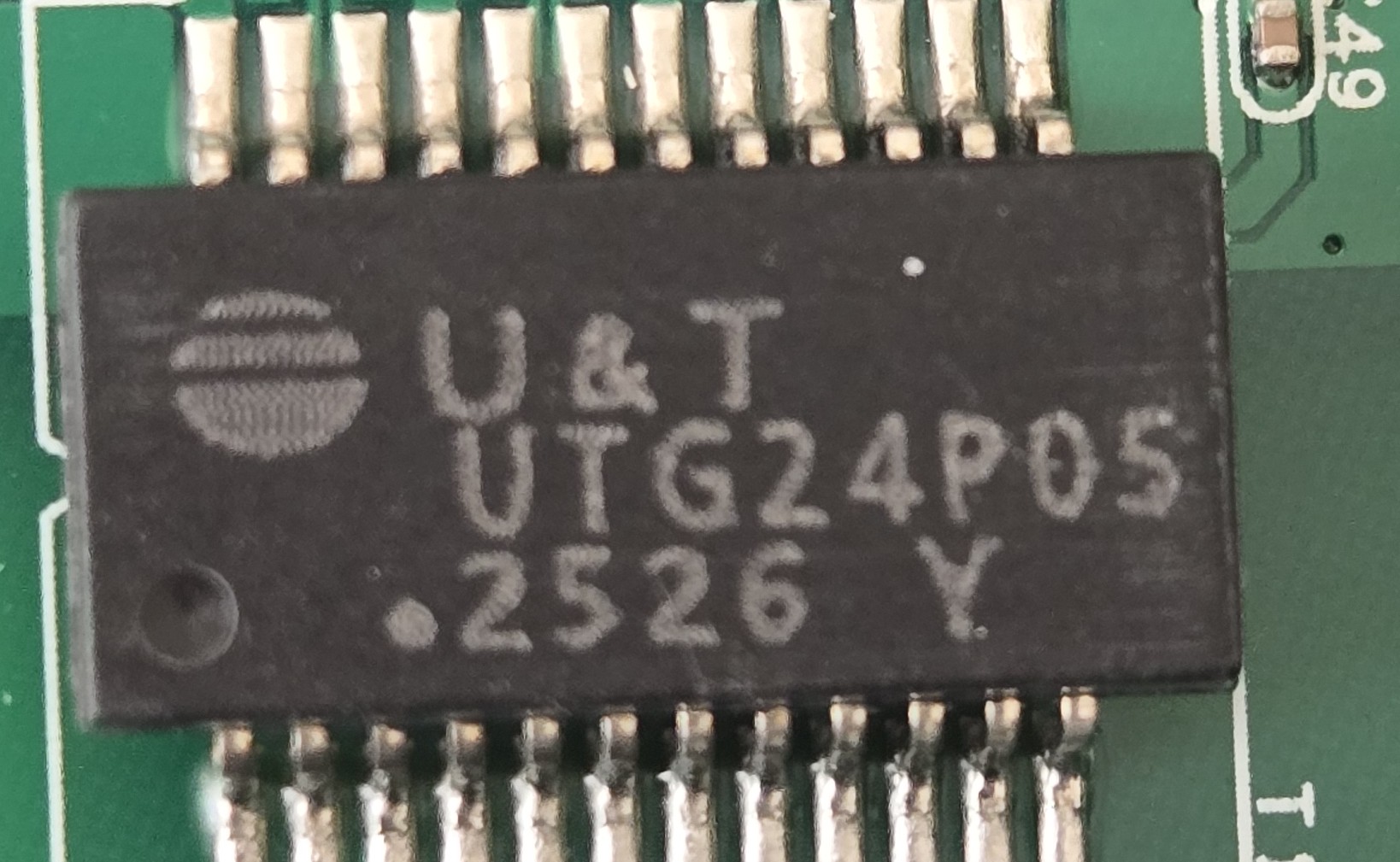

| U&T UTG24P05 | Optical transceiver (BOSA) |

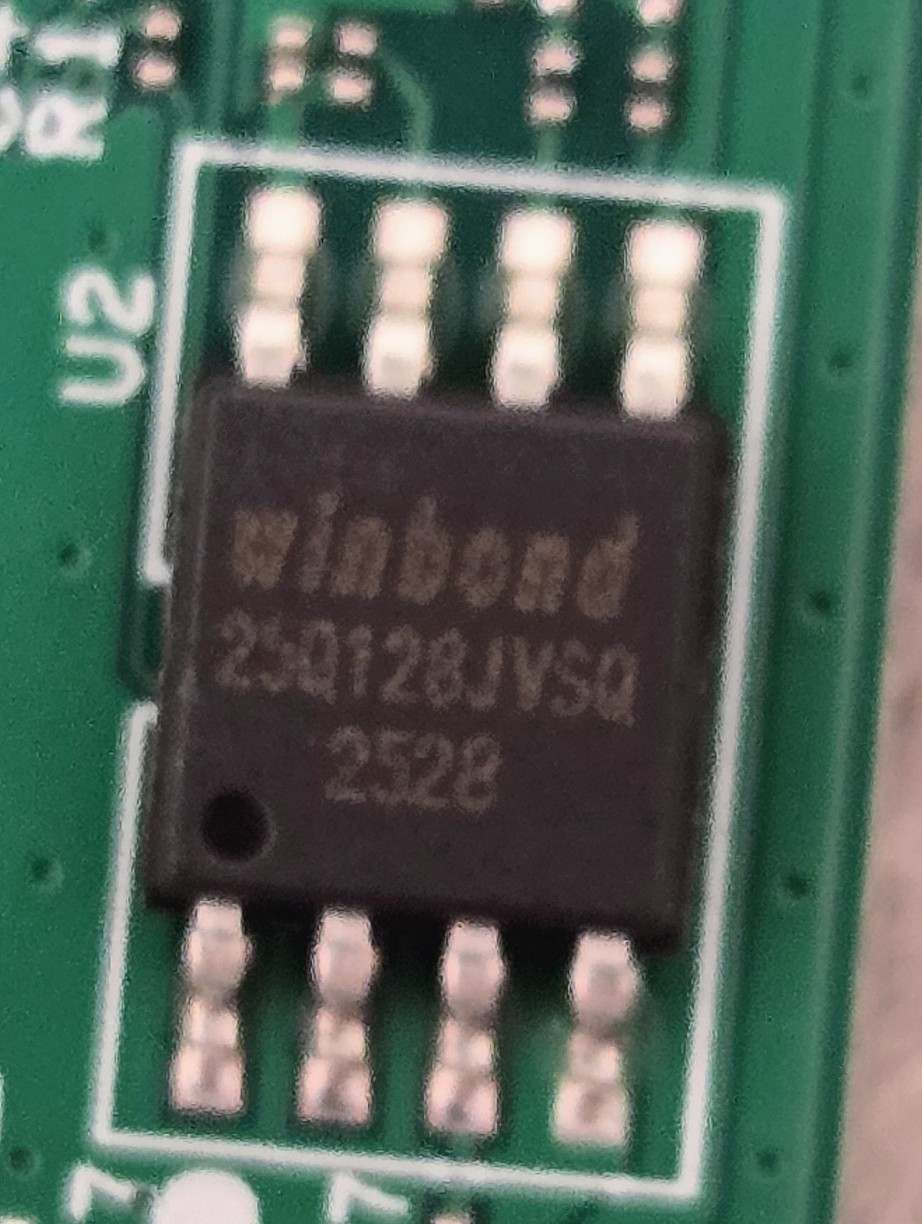

| Winbond W25Q128JVSQ | 128Mbit (16MB) SPI NOR Flash |
