Hardware Specifications
| Vendor/Brand | ODI |
| Model | DFP-34G-2C2 |
| CPU | ZTE ZX279125 |
| CPU Clock | 600Mhz |
| Flash | 16 MB |
| RAM | 32 MB |
| System | System ZTE Linux (based on Linux Kernel 2.6.32) |
| HSGMII | No |
| Optics | SC/UPC |
| IP address | 192.168.1.1 |
| Web Gui | ✅ user admin, password admin |
| SSH | |
| Telnet | ✅ user root, password Pon521 |
| Serial | |

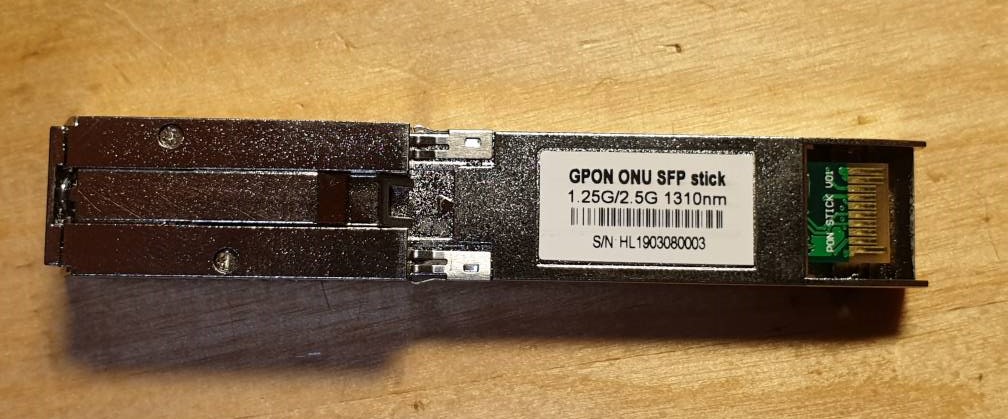

| Form Factor | miniONT SFP |
List of software versions
- LX.X.V1.0.0
List of partitions
| dev | size | erasesize | name |
|---|---|---|---|
| mtd0 | 00800000 | 00001000 | "whole flash" |
| mtd1 | 00040000 | 00001000 | "uboot" |
| mtd2 | 00130000 | 00001000 | "kernel0" |
| mtd3 | 00130000 | 00001000 | "kernel1" |
| mtd4 | 00010000 | 00001000 | "others" |
| mtd5 | 00010000 | 00001000 | "parameter tags" |
| mtd6 | 00060000 | 00001000 | "usercfg" |
| mtd7 | 00270000 | 00001000 | "rootfs0" |
| mtd8 | 00270000 | 00001000 | "rootfs1" |
This stick supports dual boot.
kernel0 and rootfs0 respectively contain kernel and firmware of the first image, while kernel1 and rootfs1 contain kernel and firmware of the second one
