Vantiva AFM0003 (formerly Technicolor AFM0003)

Also sold as: HiSense LTE3415-SH+

Hardware Specifications ​

Vendor/BrandVantiva (formerly Technicolor)
ModelAFM0003TIM
ODMHiSense
ODM Product CodeLTE3415-SH+
ChipsetRealtek RTL9601CI
Flash128MB
RAM32MB
SystemLinux 2.6 (Luna SDK 1.9)
HSGMIIYes, but not working with stock firmware
OpticsSC/APC
IP address192.168.2.1
Web GuiCan be enabled, user admin, password system
SSHNo
Telnet✅
Form FactorminiONT SFP
Serial✅
Serial baud115200
Serial encoding8-N-1
Multicast✅

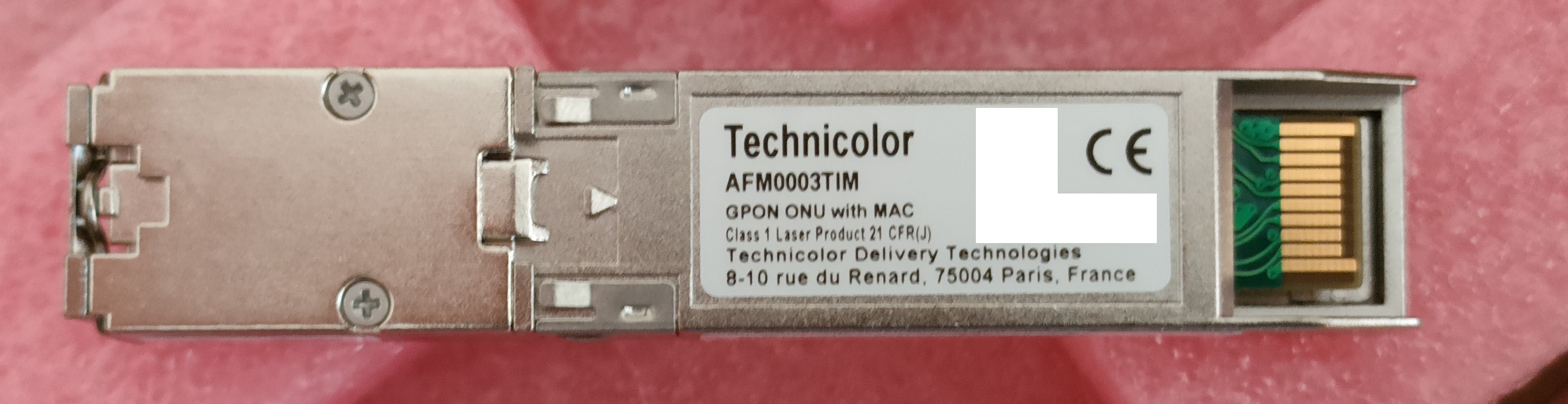

AFM0003TIM
AFM0003TIM

Serial ​

The stick has a TTL 3.3v UART console (configured as 115200 8-N-1) that can be accessed from the top surface. To accept TX line commands, the GND of the TTL adapter should be attached to the stick's shield:

Vantiva (formerly Technicolor) AFM0003 TTL Pinout
Vantiva (formerly Technicolor) AFM0003 TTL Pinout

Note

Some USB TTL adapters label TX and RX pins the other way around: try to swap them if the connection doesn't work.

Hardware Revisions ​

  • AFM0003TIM (IP address: 192.168.2.1)

List of software versions ​

  • V1_7_8_220201

List of partitions ​

devsizeerasesizename
mtd0000c000000020000"boot"
mtd10002000000020000"env"
mtd20002000000020000"env2"
mtd30180000000020000"config"
mtd40080000000020000"k0"
mtd502a4000000020000"r0"
mtd60080000000020000"k1"
mtd702a4000000020000"r1"
mtd80000100000020000"Partition_008"
mtd90000100000020000"Partition_009"
mtd100000100000020000"Partition_010"
mtd110000100000020000"Partition_011"
mtd120080000000020000"linux"
mtd1302a4000000020000"rootfs"

This stick supports dual boot.

k0 and r0 respectively contain kernel and firmware of the first image, while k1 and r1 contain kernel and firmware of the second one.

Useful files and binaries ​

Useful files ​

  • /var/config/lastgood.xml - Contains the user portion of the configuration

  • /var/config/lastgood-hs.xml - Contains the "hardware" configuration (which should not be changed)

  • /tmp/omcilog - OMCI messages logs (must be enabeled, see below)

Useful binaries ​

  • /etc/scripts/flash - Used to manipulate the config files in a somewhat safe manner
  • xmlconfig - Used for low-level manipulation of the XML config files. Called by /etc/scripts/flash
  • nv - Used to manipulate nvram storage, including persistent config entries via nv setenv/nv getenv
  • omcicli - Used to interact with the running OMCI daemon
  • omci_app - The OMCI daemon
  • diag - Used to run low-level diagnostics commands on the stick

GPON ONU status ​

Getting the operational status of the ONU ​

sh
diag gpon get onu-state

Querying a particular OMCI ME ​

sh
# omcicli mib get MIB_IDX

Getting/Setting Speed LAN Mode ​

Note

The default firmware does not allow modification of the LAN_SDS_MODE parameter. Using modded firmware is needed. Before editing the sync speed make sure your hardware supports it.

To change the link mode use this command:

sh
# /etc/scripts/flash get LAN_SDS_MODE
LAN_SDS_MODE=0
# /etc/scripts/flash set LAN_SDS_MODE 1
Valuecat /proc/kmsgModeBehavior
1<4>change mode to 1(Fiber 1G)FIBER1GbaseX with auto-neg on
2<4>change mode to 2(SGMII PHY)TP MII1Gb PHY
3<4>change mode to 3(SGMII MAC)MII1Gb MAC
4<4>change mode to 4(HiSGMII PHY)TP MII2.5Gb PHY
5<4>change mode to 5(HiSGMII MAC)MII2.5Gb MAC
6<4>change mode to 6(2500BaseX)FIBER2500baseX with auto-neg on

GPON/OMCI settings ​

Getting/Setting ONU GPON Serial Number ​

sh
# /etc/scripts/flash get GPON_SN
GPON_SN=TMBB00000000
# /etc/scripts/flash set GPON_SN TMBB0A1B2C3D

Getting/Setting ONU GPON PLOAM password ​

Info

The PLOAM password is stored in ASCII format

sh
# /etc/scripts/flash get GPON_PLOAM_PASSWD
GPON_PLOAM_PASSWD=AAAAAAAAAA
# /etc/scripts/flash set GPON_PLOAM_PASSWD AAAAAAAAAA

Getting/Setting OMCI software version (ME 7) ​

sh
# /etc/scripts/flash get OMCI_SW_VER1
OMCI_SW_VER1=YOURFIRSTSWVER
# /etc/scripts/flash set OMCI_SW_VER1 YOURFIRSTSWVER
# /etc/scripts/flash get OMCI_SW_VER2
OMCI_SW_VER1=YOURSECONDSWVER
# /etc/scripts/flash set OMCI_SW_VER2 YOURSECONDSWVER

Getting/Setting OMCI hardware version (ME 256) ​

sh
# /etc/scripts/flash get HW_HWVER
HW_HWVER=V2.0
# /etc/scripts/flash set HW_HWVER MYHWVERSION

Getting/Setting OMCI vendor ID (ME 256) ​

sh
# /etc/scripts/flash get PON_VENDOR_ID
PON_VENDOR_ID=ZTEG
# /etc/scripts/flash set PON_VENDOR_ID HWTC

Getting/Setting OMCI equipment ID (ME 257) ​

sh
# /etc/scripts/flash get GPON_ONU_MODEL
GPON_ONU_MODEL=DFP-34X-2C2
# /etc/scripts/flash set GPON_ONU_MODEL DFP-34X-XXX

Getting/Setting OMCI OLT Mode and Fake OMCI ​

Configure how ONT Stick handle OMCI from OLT:

sh
# /etc/scripts/flash get OMCI_OLT_MODE
OMCI_OLT_MODE=1
# /etc/scripts/flash set OMCI_OLT_MODE 2
ValueNoteOMCI Information
0Default ModeStock setting, some values cannot be changed
1Huawei OLT ModeHuawei MA5671a
2ZTE OLT ModeZTE
3Customized ModeCustom Software/Hardware Version, OMCC, etc...

Some vendors/wholesale providers/ISPs have explicit LAN Port Number provisioning or proprietary OMCI that the stick cannot understand, this will make the stick reply OK to whatever the OLT sends it via OMCI.

0 = Disable, 1 = Enable, Default is 0

sh
# /etc/scripts/flash get OMCI_FAKE_OK
OMCI_FAKE_OK=0
# /etc/scripts/flash set OMCI_FAKE_OK 1

Advanced settings ​

Setting management IP ​

sh
# /etc/scripts/flash get LAN_IP_ADDR
LAN_IP_ADDR=192.168.2.1
# /etc/scripts/flash set LAN_IP_ADDR 192.168.1.1

Getting/Setting the L2 Bridge MTU ​

Note

Settings given via diag are not permanent after reboot

Getting/Setting the MTU of the L2 bridge

sh
# diag switch get max-pkt-len port all
Port Speed
----------
0 1538
2 2031
# diag switch set max-pkt-len port all length 2000

Checking the currently active image ​

sh
# nv getenv sw_active
sw_active=1
# nv getenv sw_version0
sw_version0=V1_7_8_210412
# nv getenv sw_version1
sw_version1=V1_7_8_210412

Booting to a different image ​

sh
# nv setenv sw_commit 0|1
# reboot

Enabling the Web UI ​

sh
# /bin/iptables -D INPUT -p tcp --dport 80 -j DROP

Transfering files from/to the stick ​

Works with binary files too, just run md5sum on source and destination to make sure you are not corrupting anything... From the stick to the PC:

sh
# tftp <IP>
tftp> put <filename> <directory>
tftp> q

From the PC to the stick:

sh
# tftp <IP>
tftp> get <filename>
tftp> q

Extracting and repacking the rootfs ​

Warning

Make sure you run both commands as root, otherwise you might get a damaged rootfs image

sh
# unsquashfs mtd5.bin
# mksquashfs squashfs-root rootfs -b 131072 -comp lzma -no-recovery

Flashing a new rootfs ​

Info

Only the inactive image can be flashed, change sw_versionX and sw_commit X based on the bank you have flashed

Flash mtd4/5 if you are on image1, mtd6/7 if you are on image0.

The following commands are used to flash a new rootfs to image1 and then boot to it

sh
# flash_eraseall /dev/mtd7
# cat /tmp/rootfs.new > /dev/mtd7

If you get this error on cat command

sh
# cat /tmp/rootfs.new > /dev/mtd7
cat: write error: Invalid Argument

Use this proceudre instead to write firmware back to mtd:

sh
# flash_eraseall /dev/mtd7
# cat /tmp/rootfs.new > /dev/mtdblock7

Then make new firmware bootable

sh
# nv setenv sw_version1 NEW_SOFTWARE_VERSION
# nv setenv sw_commit 1
# reboot
