Hardware Specifications
| Vendor/Brand | TP-Link |
| Model | XB432V |
| ODM | |
| CPU | |
| CPU Clock | |
| Chipset | |
| Flash | |
| RAM | |
| System | |
| Ethernet | 2 1GbE LAN, 1 2.5GbE LAN, 1 2.5GbE WAN |
| Optics | SC/APC |
| IP address | 192.168.1.1 |
| Web Gui | ✅ |
| SSH | |
| Telnet | |
| Serial | Only RX |
| Form Factor | CPE with ONT |
GPON/OMCI settings
Setting ONU GPON Serial Number

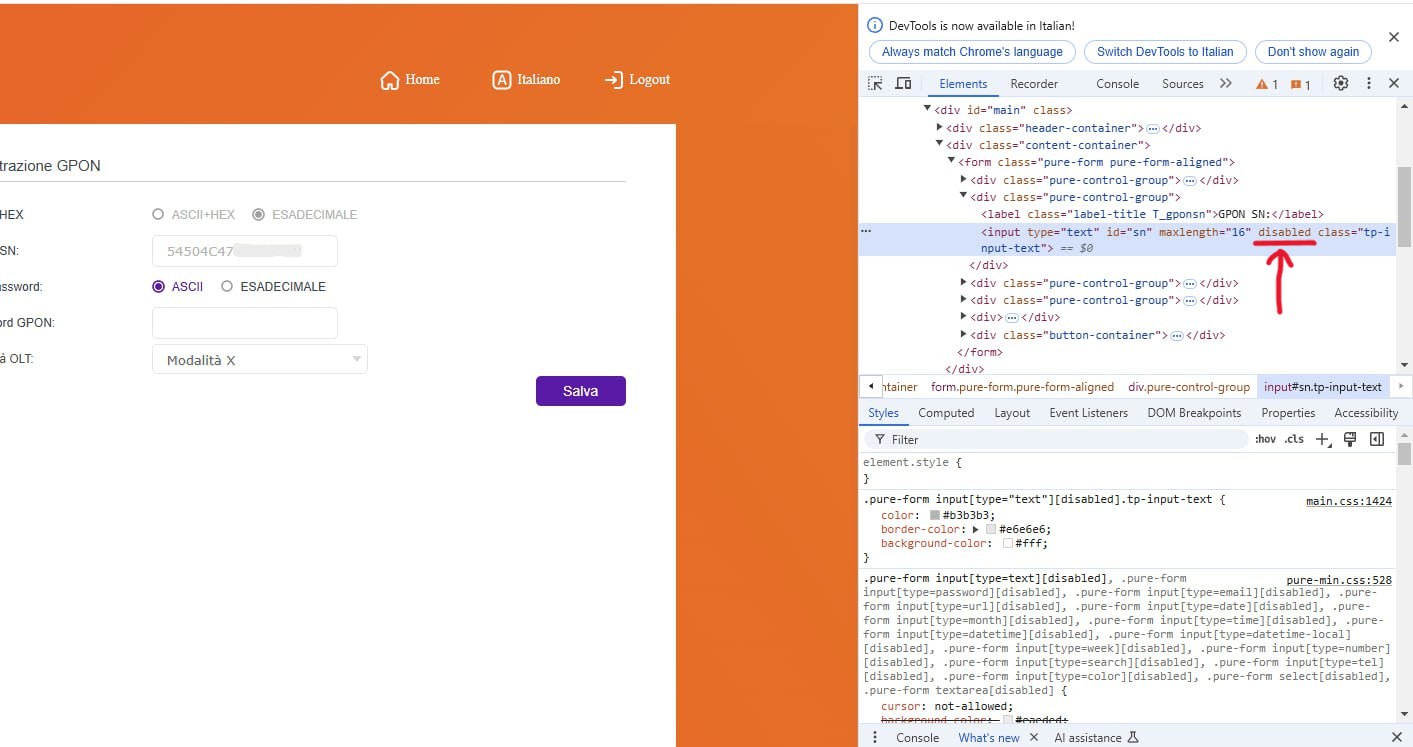

In the "Rete -> Impostazioni GPON" page, GPON SN field is disabled and not editable. It can be enabled via the browser’s developer console by editing the HTML code and setting HTML disabled attribute to enabled.
Setting ONU GPON PLOAM password
This can be easily done via the Web UI from the same "Rete -> Impostazioni GPON" page. The password field is already editable.
