Hardware Specifications

Vendor/Brand	T3 Technology / TrueOnline
Model	T723
CPU	2x ARM Cortex-A9 (ARMv7 Processor rev 1)
Chipset	HiSilicon A9, board description HWSOC13
Flash	256 MB SPI-NAND
RAM	512 MB DDR (434M exposed by the kernel boot arguments)
System	Huawei Dopra/WAP-derived Linux 5.10.0
Ethernet	1x 2.5GbE LAN, 3x 1GbE LAN
Voice	1x POTS
Web Gui	✅ HTTPS
SSH	Disabled by default; vendor WAP CLI when enabled
Telnet	Disabled by default; vendor WAP CLI when enabled
Serial	ttyAMA1, 115200 baud in boot arguments; physical access untested
Form Factor	Wi-Fi 7 CPE with integrated GPON ONT

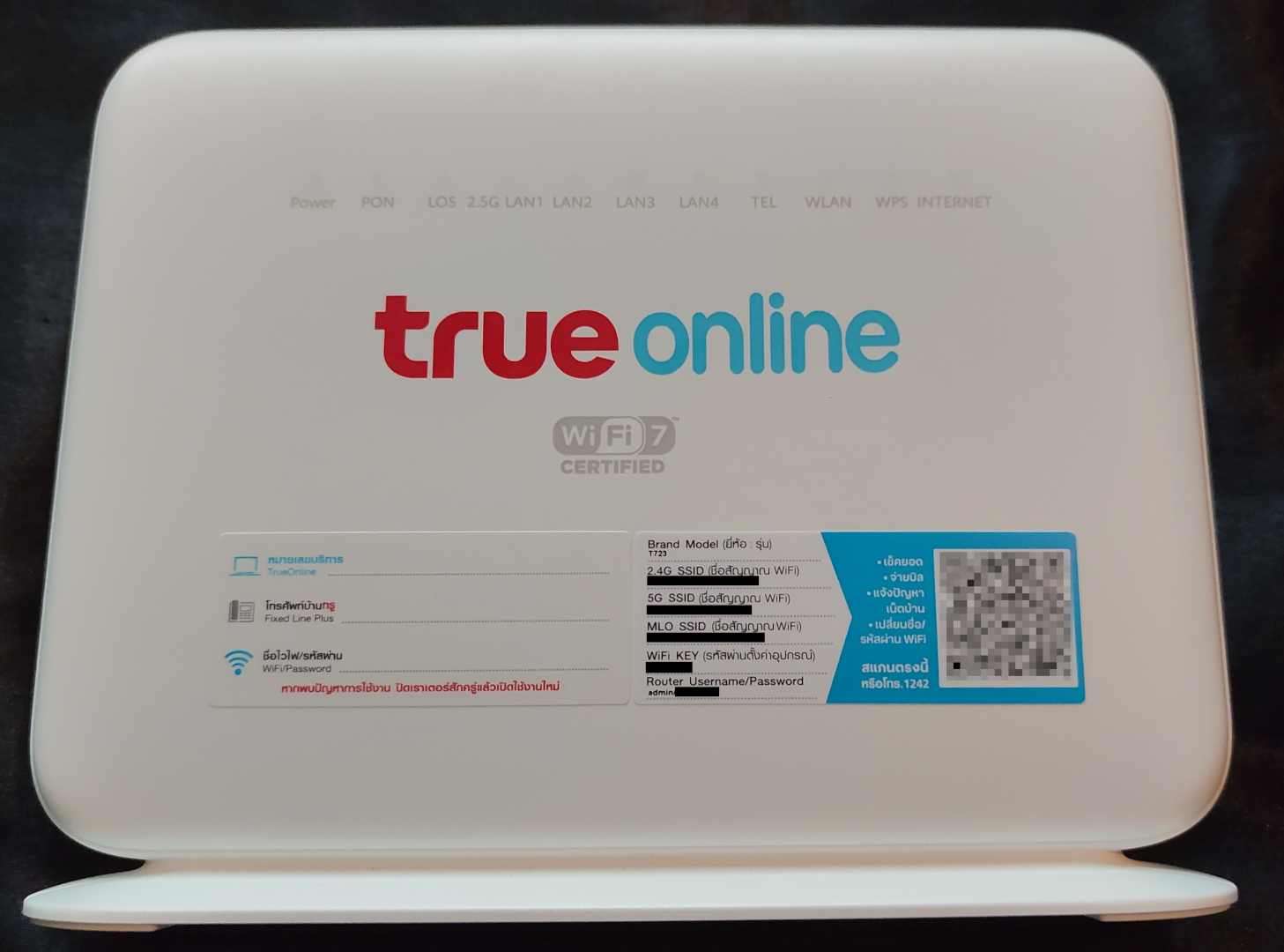

TrueOnline-branded T3 Technology T723 (credentials redacted)

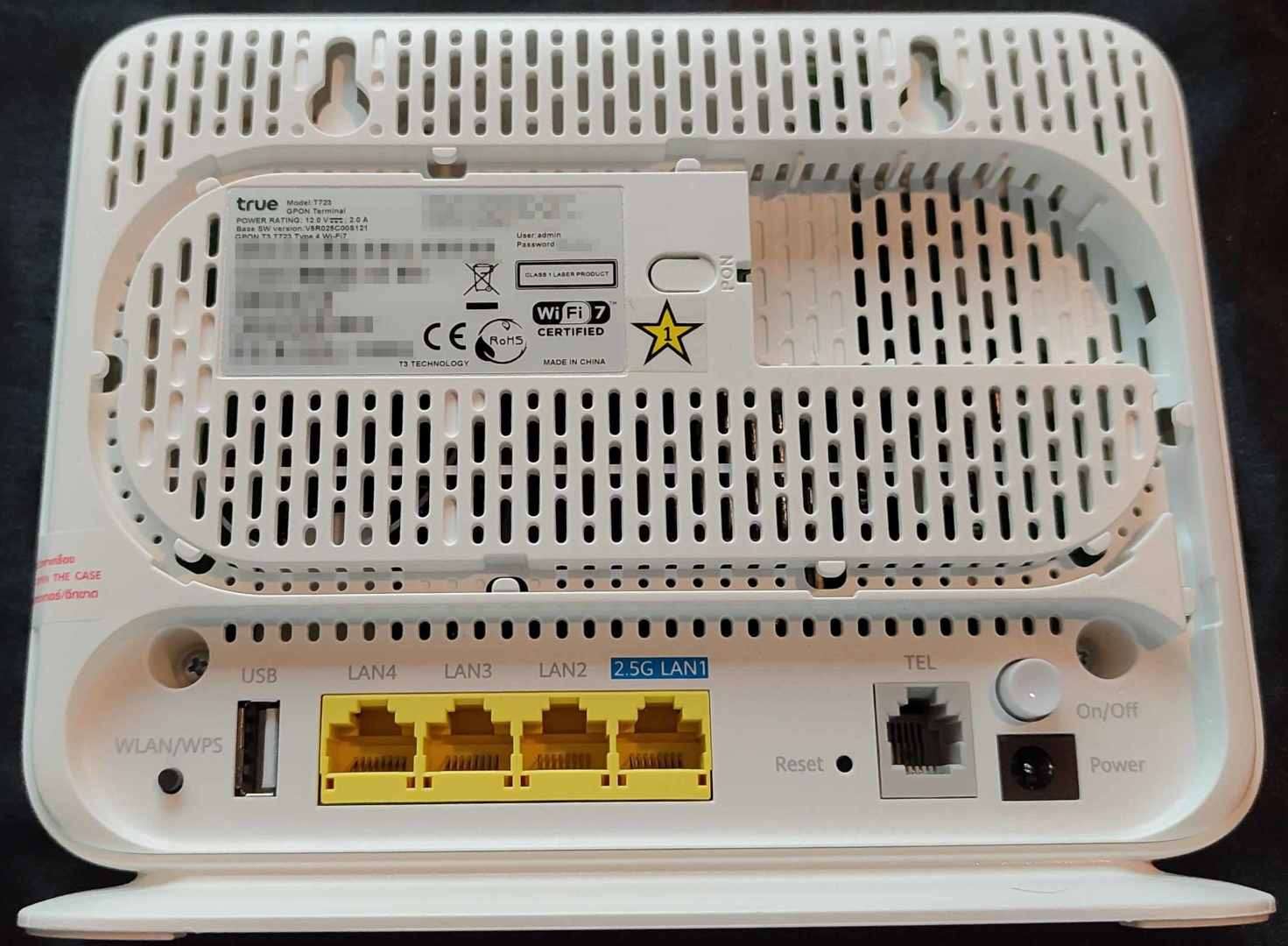

T723 rear ports and underside label (identifiers and credentials redacted)

Note

The details below were verified on a TrueOnline unit with hardware revision 4EF8.D.

Software versions

hardware version          = 4EF8.D
main software version     = V5R025C00S126
standby software version  = V5R025C00S121
uboot version             = 2022.07
kernel version            = 5.10.0

Flash layout

The boot arguments report flashsize=0x10000000, ddr_realsize=512M, flash_chip=spinand, and a SquashFS root inside ubilayer_v5.

dev	size	erasesize	name
mtd0	00100000	00020000	bootcode
mtd1	0ff00000	00020000	ubilayer_v5
mtd2	0001f000	0001f000	flash_configA
mtd3	0001f000	0001f000	flash_configB
mtd4	0001f000	0001f000	slave_paramA
mtd5	0001f000	0001f000	slave_paramB
mtd6	03548000	0001f000	allsystemA
mtd7	03548000	0001f000	allsystemB
mtd8	0001f000	0001f000	wifi_paramA
mtd9	0001f000	0001f000	wifi_paramB
mtd10	00117000	0001f000	keyfile
mtd11	00a0d000	0001f000	file_system
mtd12	07820000	0001f000	app_system

The allsystemA and allsystemB volumes provide the A/B firmware images. The tested unit booted the SquashFS image embedded in allsystemB; writable application data is stored on UBI volumes mounted below /mnt/jffs2.

Access

Vendor CLI

Both Telnet and SSH were disabled in the tested TrueOnline configuration. After they were enabled, Telnet (TCP 23) and the vendor-modified Dropbear service (TCP 22) both opened the Huawei-style WAP CLI. SSH does not provide a normal POSIX shell and may present a second Login: prompt inside the SSH session.

The tested configuration has separate privileged accounts:

• superadmin is the X_HW_CLIUserInfoInstance used by the WAP CLI;
• telecomadmin is a level-0 X_HW_WebUserInfoInstance used by the web interface.

They are not interchangeable, and their passwords are operator/device-specific.

Useful read-only commands include:

display version
display onu info
display pppoe client all
display current-configuration
display tr069 info

The su command changes the prompt from WAP> to SU_WAP>. The subsequent vendor shell command remains restricted and must not be confused with unrestricted Linux root access.

GPON status

Getting the operational status of the ONU

SU_WAP> display onu info
onuid:<redacted> reg status:O5 xpon module:1

success!

Confirming bridge mode

When the Internet WAN is bridged, the ONT has no local PPP client:

SU_WAP> display pppoe client all
----------------------------------------------------------------------
Index  Interface HW Addr             State           IP/Netmask
----------------------------------------------------------------------
----------------------------------------------------------------------
Total: 0
success!

On the tested TrueOnline service, VLAN 100 with priority 0 was retained while the WAN was changed to PPPoE_Bridged with NAT disabled. A downstream router connected to the 2.5GbE LAN1 port then established the PPPoE session. These VLAN and authentication details are operator-specific.

Configuration format

Configuration exports use two layers of Huawei encryption:

1. The complete XML is gzip-compressed, encrypted with the AESCrypt2 AES-256-CBC/HMAC-SHA256 format, and prefixed by an eight-byte Huawei header. The header checksum uses polynomial 0x04C11DB7, flushing four zero bytes after every 1024-byte chunk of IV || ciphertext || HMAC.
2. Sensitive XML attribute values may additionally use Huawei $2...$ strings: AES-256-CBC with an appended IV and a custom printable base-93 representation.

NetworkAndRouterTools supports the outer configuration wrapper, while huawei-utility-page documents and implements the inline $2...$ format.

Warning

Configuration exports contain device identifiers and credentials. Do not publish an original or decrypted export; use generated fixtures when testing tools.
