Hardware Specifications

Vendor/Brand	BT-PON
Model	BT-G711AX
Chipset	Realtek RTL9607Cv2 (Realtek RTL8198D is mentioned too in boot log???)
Flash	SPI NAND 128MiB (Winbond W25N01GVZEIG)
RAM	DDR3 256MiB
CPU	Formosa MIPS interAptiv (multi) V2.0
CPU Clock	1150MHz
Wireless	RTL8192XBR 2x2 2.4Ghz (bgn+ax), RTL8832BR 2x2 5Ghz (an+ac+ax)
Bootloader	U-Boot 2020.01
System	Linux 4.4.140 (Realtek MSDK-4.8.5p1 Build 3068)
Load addr	80010000
Ethernet ports	4x1G
POTS ports	1xRJ11 (Si32192)
Optics	SC/UPC (SEMTECH GN25L95)
IP address	192.168.1.1/24
Web Gui	✅ user admin, password YnQtcG9u OR user useradmin, password 123456
SSH	NO
Telnet	✅ user supertelnet, password supertelnet
FTP	✅ port 21
Serial	✅
Serial baud	115200
Serial encoding	8-N-1
Form Factor	ONT

Serial

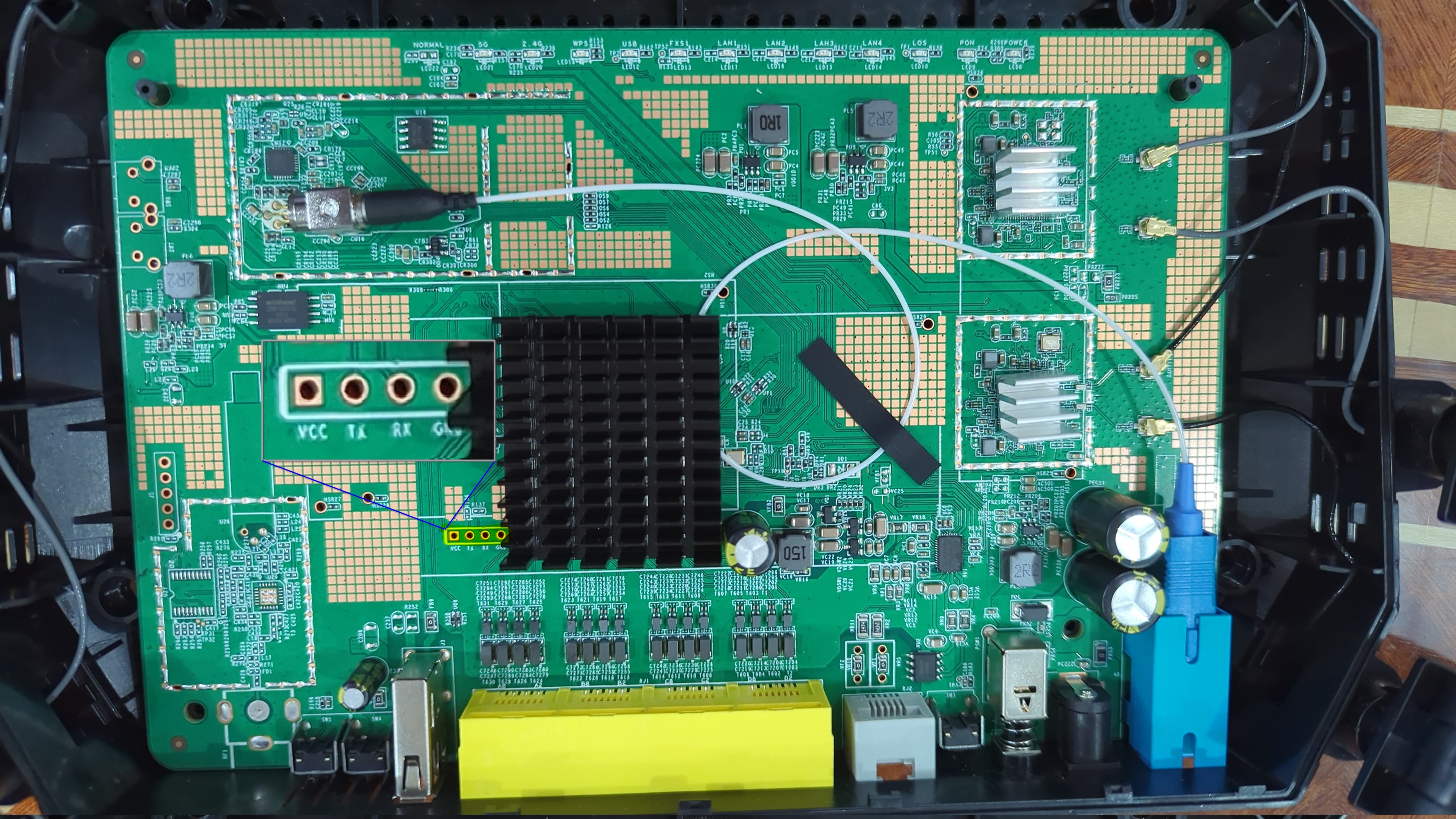

BT-G711AX: serial pinout

You can easily communicate with the ONT using a TTL converter (for example the CH341A programmer in TTL mode) by connecting the converters’ pins to the ONT following the pinout shown in the image above.

Once everything is ok, any TTY client, such as PuTTY, can be used to open the connection with its baud rate set to 115200. At this point, the ONT can be turned on.

Press any key once you see Hit any key to stop autoboot (You only have 1 second to do this so be quick) after which you get access to bootloader console which looks like this:

Phoebus#

List of partitions

cat /proc/mtd

dev	size	erasesize	name
mtd0	000e0000	00020000	"boot"
mtd1	00020000	00020000	"env"
mtd2	00020000	00020000	"env2"
mtd3	00020000	00020000	"static_conf"
mtd4	07c40000	00020000	"ubi_device"
mtd5	00a89000	0001f000	"ubi_Config"
mtd6	00a0d000	0001f000	"ubi_k0"
mtd7	01911000	0001f000	"ubi_r0"
mtd8	00a0d000	0001f000	"ubi_k1"
mtd9	01911000	0001f000	"ubi_r1"

Only the first 4 partitions with erasesize 0x20000 should be manipulated using mtd devices, the fifth partition ubi_device contains the rest of the NAND and is to be manipulated using ubi volumes

List of volumes (UBI)

ubinfo -a

dev	size	type	name
ubi0_0	11046912B	dynamic	"ubi_Config"
ubi0_1	10539008B	dynamic	"ubi_k0"
ubi0_2	26284032B	dynamic	"ubi_r0"
ubi0_3	10539008B	dynamic	"ubi_k1"
ubi0_4	26284032B	dynamic	"ubi_r1"

To back up a volume, cat or dd the appropriate /dev/ubi0_X device to a file or pipe, to restore a volume, use the ubiupdatevol utility (or just do it safely via the WebGUI)

This ONT supports dual boot.

Volumes ubi_k0 and ubi_r0 respectively contain kernel and rootfs of the first image, while ubi_k1 and ubi_r1 contain kernel and rootfs of the second one.

Useful files and binaries

Useful files

• /var/config/config.xml - Contains the user portion of the configuration
• /var/config/config_hs.xml - Contains the "hardware" configuration (which should not be changed)
• /tmp/omcilog - OMCI messages logs (must be enabeled, see below)

Useful binaries

• flash - Used to manipulate the config files in a somewhat safe manner
• nv - Used to manipulate nvram storage, including persistent config entries via nv setenv/nv getenv
• omcicli - Used to interact with the running OMCI daemon
• omci_app - The OMCI daemon
• diag - Used to run low-level diagnostics commands on the stick

Usage

Enable telnet

Telnet should be enabled by default but if that is not the case, you can enable it by editing configuration file you get in the Web UI. Go to Admin -> Backup and Restore Settings -> Backup Settings to File to get the config file in xml format and find MIB_TELNET_ENABLE and its value to 1. There is also telnet and telnet_port under ACL_IP_TBL, you should set these to 2 and 23 respectively.

Info

Curiously, there is also ssh and ssh_port in there but changing these doesn't do anything for enabling SSH, most likely due to lack of ssh capability of this ONT

After logining in using the credentials in the table above, use the su command to gain root access to the shell.

$ su
#

GPON ONU status

Getting the operational status of the ONU

diag gpon get onu-state

Getting OLT vendor information

# omcicli mib get 131

Querying a particular OMCI ME

# omcicli mib get MIB_IDX

GPON/OMCI settings

Getting/Setting ONU GPON Serial Number

# flash get GPON_SN
GPON_SN=TMBB00000000
# flash set GPON_SN TMBB0A1B2C3D

Getting/Setting ONU GPON PLOAM password

Info

The PLOAM password is stored in ASCII format

# flash get GPON_PLOAM_PASSWD
GPON_PLOAM_PASSWD=AAAAAAAAAA
# flash set GPON_PLOAM_PASSWD AAAAAAAAAA

Getting/Setting ONU GPON LOID and LOID password

# flash get LOID
LOID=user
# flash set LOID user
# flash get LOID_PASSWD
LOID_PASSWD=user
# flash set LOID_PASSWD user

Getting/Setting OMCI software version (ME 7)

# flash get OMCI_SW_VER1
OMCI_SW_VER1=YOURFIRSTSWVER
# flash set OMCI_SW_VER1 YOURFIRSTSWVER
# flash get OMCI_SW_VER2
OMCI_SW_VER2=YOURSECONDSWVER
# flash set OMCI_SW_VER2 YOURSECONDSWVER

Getting/Setting OMCI hardware version (ME 256)

# flash get HW_HWVER
HW_HWVER=V2.0
# flash set HW_HWVER MYHWVERSION

Getting/Setting OMCI vendor ID (ME 256)

# flash get PON_VENDOR_ID
PON_VENDOR_ID=ZTEG
# flash set PON_VENDOR_ID HWTC

Getting/Setting OMCI equipment ID (ME 257)

# flash get GPON_ONU_MODEL
GPON_ONU_MODEL=DFP-34X-2C2
# flash set GPON_ONU_MODEL DFP-34X-XXX

Getting/Setting OMCI OLT Mode and Fake OMCI

Configure how ONT Stick handle OMCI from OLT:

# flash get OMCI_OLT_MODE
OMCI_OLT_MODE=1
# flash set OMCI_OLT_MODE 2

Value	Note	OMCI Information
0	Default Mode	Stock setting, some values cannot be changed
1	Huawei OLT Mode	Huawei MA5671a
2	ZTE OLT Mode	ZTE
3	Customized Mode	Custom Software/Hardware Version, OMCC, etc...

Some vendors/wholesale providers/ISPs have explicit LAN Port Number provisioning or proprietary OMCI that the stick cannot understand, this will make the stick reply OK to whatever the OLT sends it via OMCI.

0 = Disable, 1 = Enable, Default is 0

# flash get OMCI_FAKE_OK
OMCI_FAKE_OK=0
# flash set OMCI_FAKE_OK 1

Advanced settings

Transferring files to/from the router

This router has a capability of sharing files using ftp, tftp and netcat.

Setting management MAC

# flash get ELAN_MAC_ADDR
ELAN_MAC_ADDR=xxxxxxxxxxxx
# flash set ELAN_MAC_ADDR xxxxxxxxxxxx

Setting management IP

# flash get LAN_IP_ADDR
LAN_IP_ADDR=192.168.2.1
# flash set LAN_IP_ADDR 192.168.1.1

Rebooting the ONU

reboot

Getting/Setting the MTU of the L2 bridge

Note

Settings given via diag are not permanent after reboot

# diag switch get max-pkt-len port all
Port Speed
----------
0 1538
2 2031
# diag switch set max-pkt-len port all length 2000

Checking the currently active image

# nv getenv sw_active
sw_active=1
# nv getenv sw_version0
sw_version0=V1_7_8_210412
# nv getenv sw_version1
sw_version1=V1_7_8_210412

Booting to a different image

# nv setenv sw_commit 0|1
# reboot

Miscellaneous Links

• Configuration Manual which explains the Web UI of this ONT
• Datasheet

Theardown and other photos

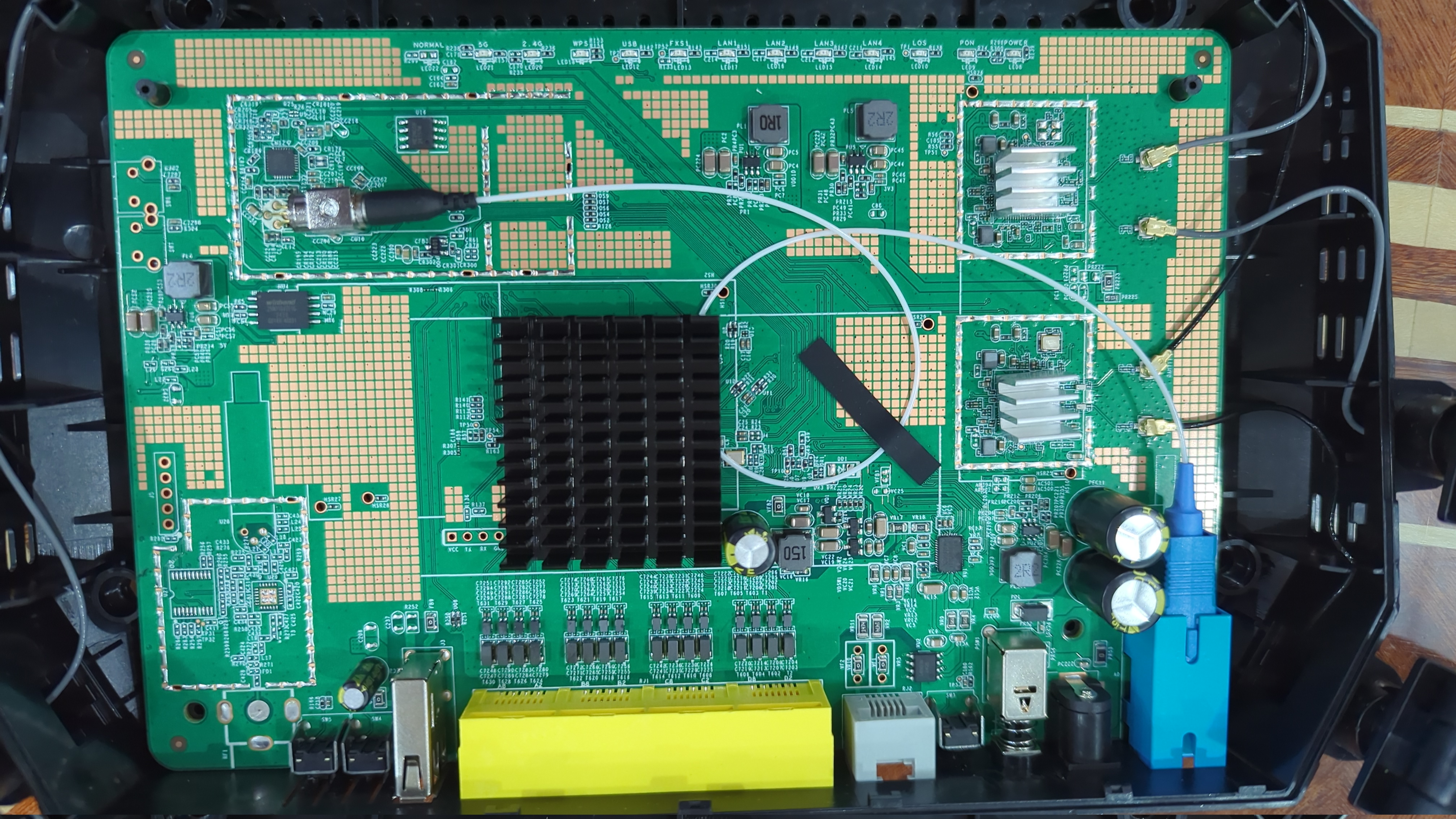

BT-PON BT-G711AX Board

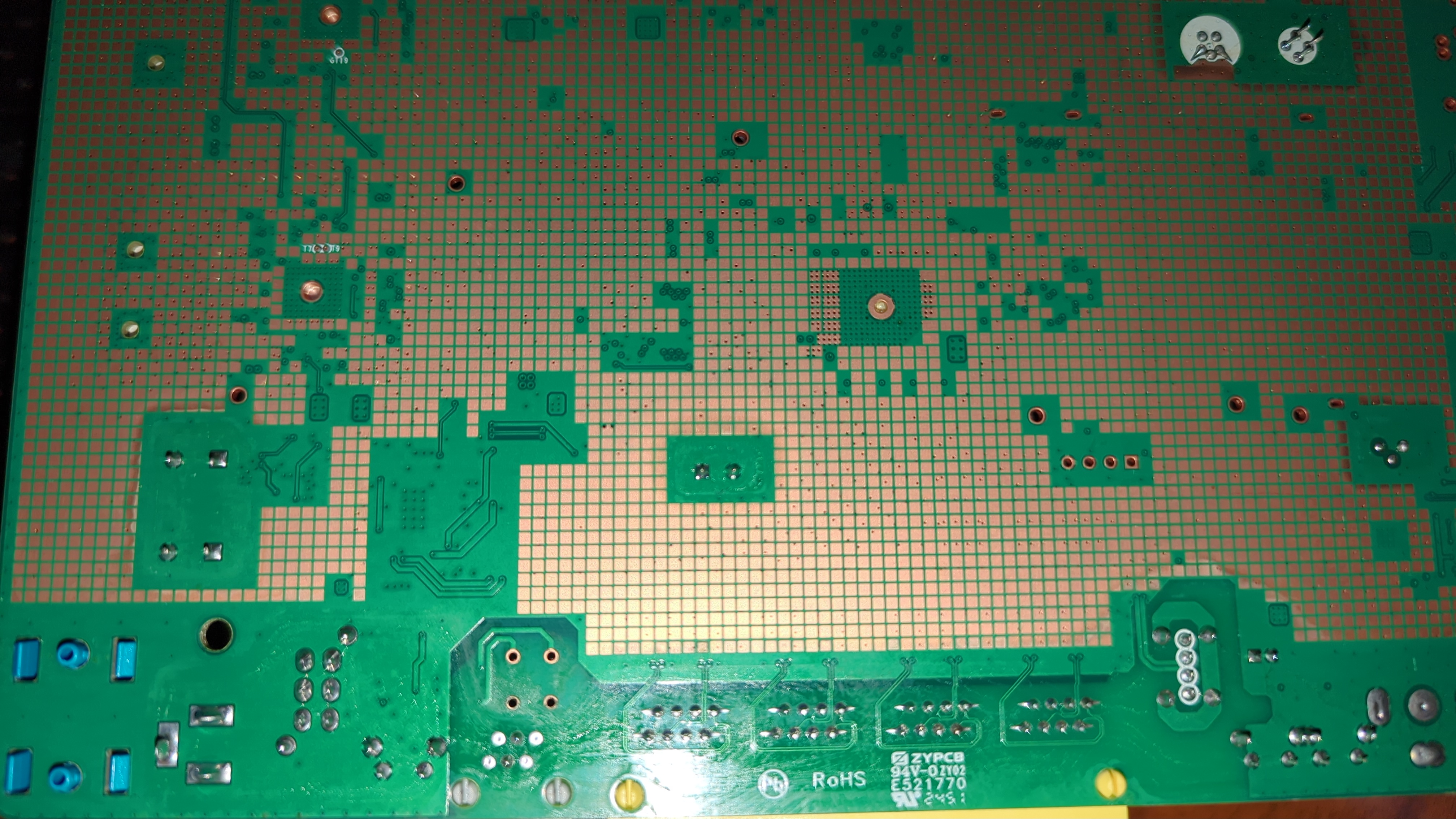

BT-PON BT-G711AX Board (bottom side)
